Viaszfröccsöntő kézi pumpával

Viaszoló gép, kézi pumpa

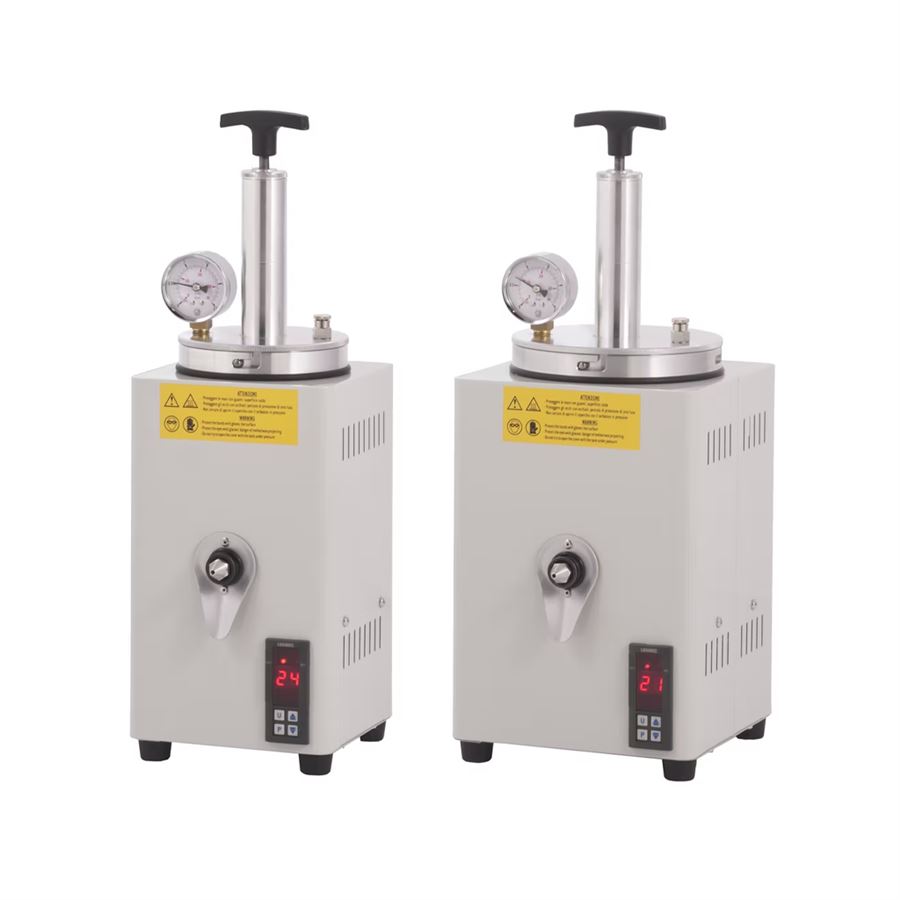

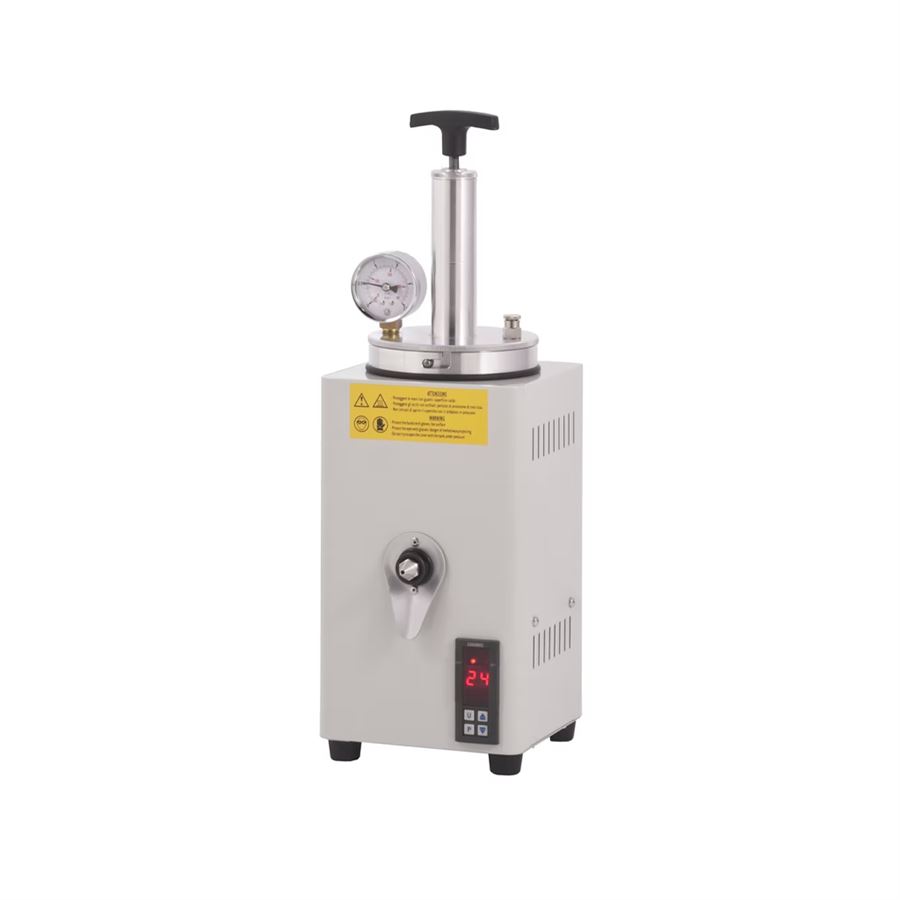

A kézi pumpás viaszfecskendező stabil hőmérsékleten tartja a viaszt, és a fúvókán keresztül egyenletesen, megszakítás nélküli sugárban nyomja a formába. 1,5 vagy 2,5 literes tartállyal kapható.
Viaszfröccsöntő kézi pumpávalViaszfröccsöntő kézi pumpávalViaszfröccsöntő kézi pumpával


A kézi pumpás viaszfecskendező stabil hőmérsékleten tartja a viaszt, és a fúvókán keresztül egyenletesen, megszakítás nélküli sugárban nyomja a formába. 1,5 vagy 2,5 literes tartállyal kapható.

In order to meet these needs, our injectors have been designed with advice from master goldsmiths, with the aim of solving the problems which often occur in the wax casting of small pieces, such as the stability and uniformity of the temperature of the mass of molten wax, the regulation of its pressure and the accuracy of the injection nozzles.Our injectors are equipped with tanks in lightweight aluminium alloy, very reliable and strong, where heating is provided by a band type heating element running right round the outside. This guarantees a uniform temperature of all wax which is inside. The setup and precise control of the temperature are performed by a digital thermostat , while particular attention has been paid to the study of the special valve with charge reserve, which allows the generation of jets of wax without interruptions or air bubbles.

  • External dimension (mm): 160 x 160 x 520
  • Power supply voltage: 220V, 50/60 Hz
  • Heating power: 160 W
  • Tank capacity: 1500 cc
