The most important feature of this unit is that you are mixing and pouring investment under a controlled vacuum environment.

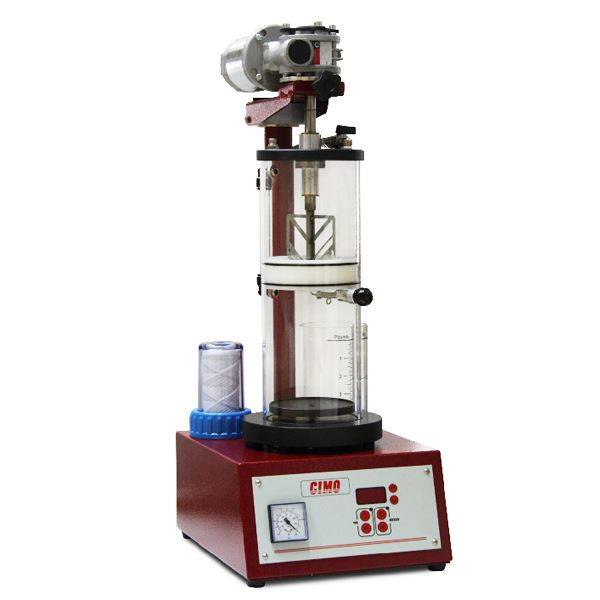

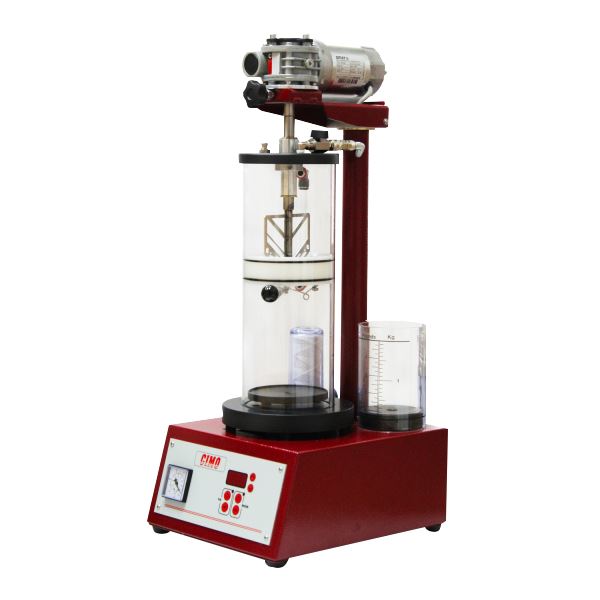

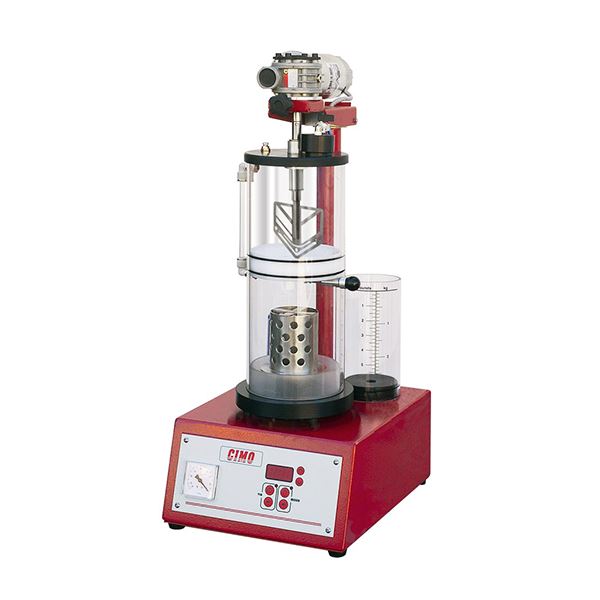

With the St. Louis Mixers, you can automatically mix and pour your investment in an enclosed see through mixing chamber. A very important feature of these units are, you are mixing and pouring investment under a controlled vacuum environment with vibration. This is a real time saver as you will not have to separate mixing, pouring and vacuuming operations. Since it is user friendly, anyone can be trained in a few minutes on how to operate these units.

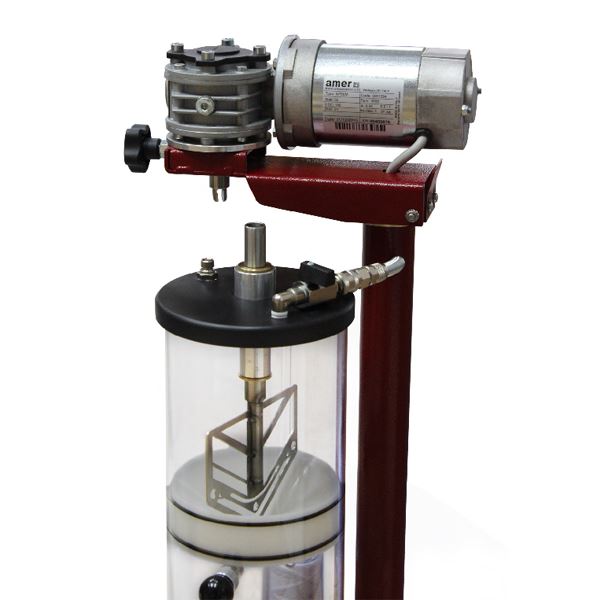

Simply place your flasks in the lower flask chamber below the investment mixing chamber. Add the correct amount of investment based on your flask size, start the vacuum pump (not included), open the water valve from the graduated water cylinder, and then start the adjustable speed mixing motor and set your timer. For multiple flasks units, you can electronically turn the table to align the next flask under the pouring valve. As the investment fills the flasks, turn on the adjustable vibration table under the flasks and you are done!
The MINI MIX has adjustable vibration & speed control and a 1-liter capacity. Great for producing one 100mm x 120mm flask per cycle.
- Model: Minimix
- Powder Capacity: 1 Kg
- Investing Flask: One Flask
- Flask Max Height: 120 mm
- Flask Plate Diameter: 100 mm
- Voltage: 220V
- Single Phase: X
- Vacuum Pump: Not Included
- Pump: 6/10m3
- Base Dimensions: 300 mm x 350 mm
- Height: 720 mm
- Weight: 17 Kg
