Galvanizáló berendezés DIGITAL II, 2.0 verzió

Galvanizáló berendezés DIGITAL II, 2.0 verzió

Az ön ára ÁFA nélkül
2 920,00 €
Az ön ára ÁFA-val
3 533,20 €
2920
9169.0000.W8
Gyártó
Jentner
Hlavní sklad (Strašnice)
Raktáron > 1 db
Prodejna (Soukenická)
Raktáron 0 db
Kód
19208



Digital small-size electrplating unit which can be used for all common galvanic baths.
Galvanizáló berendezés DIGITAL II, 2.0 verzió


Digital small-size electrplating unit which can be used for all common galvanic baths.

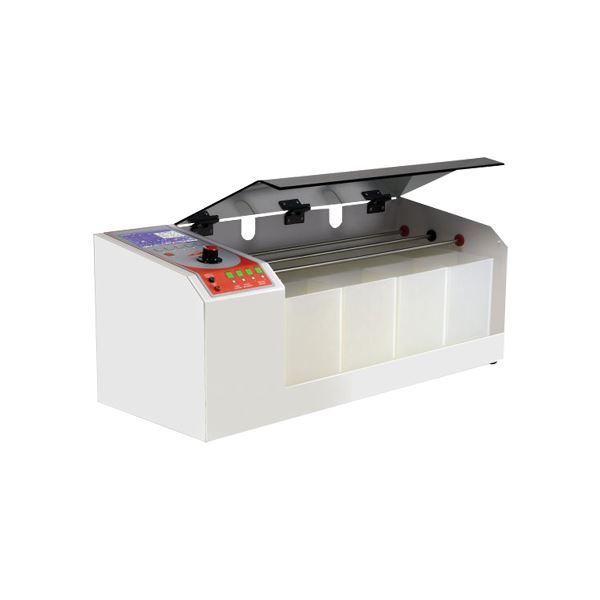

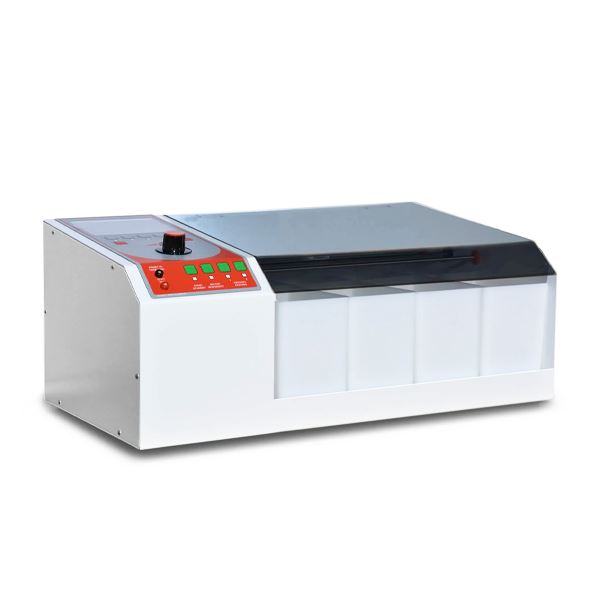

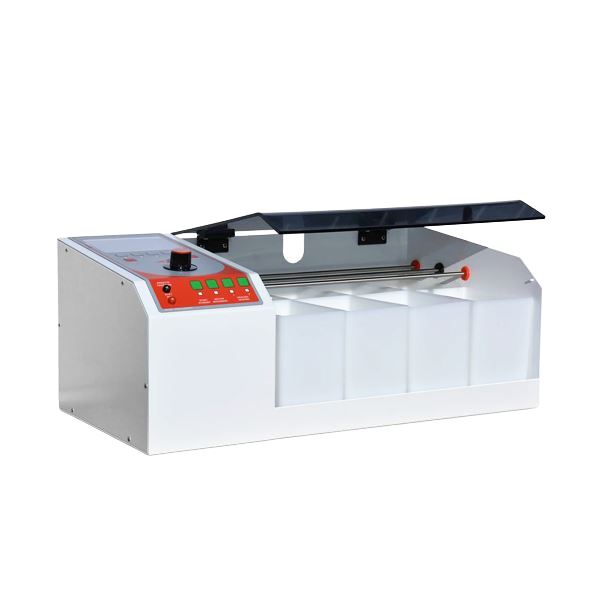

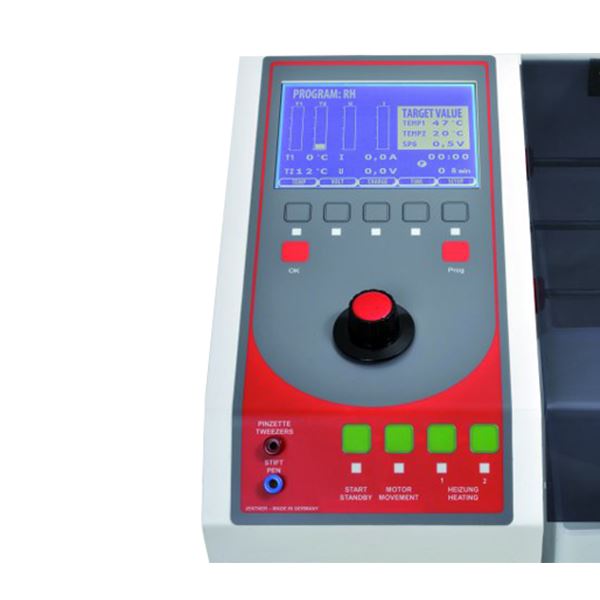

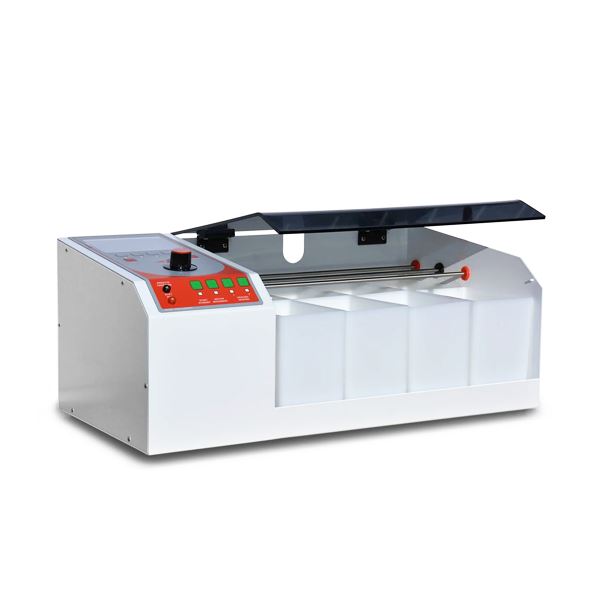

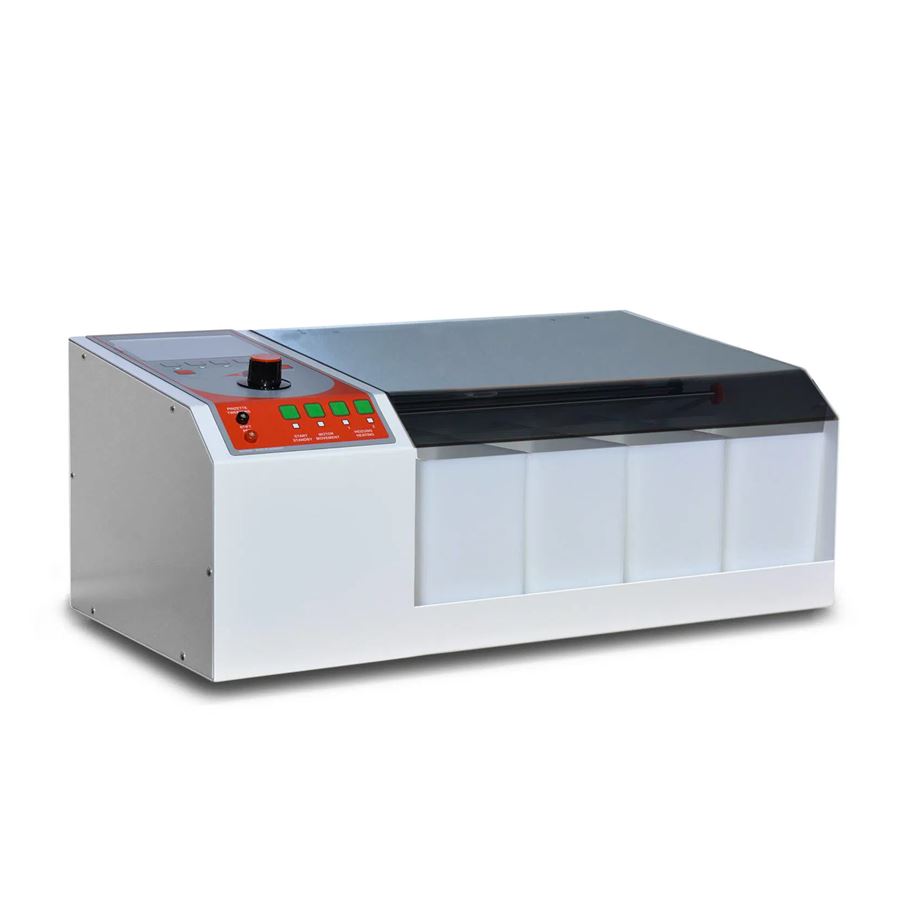

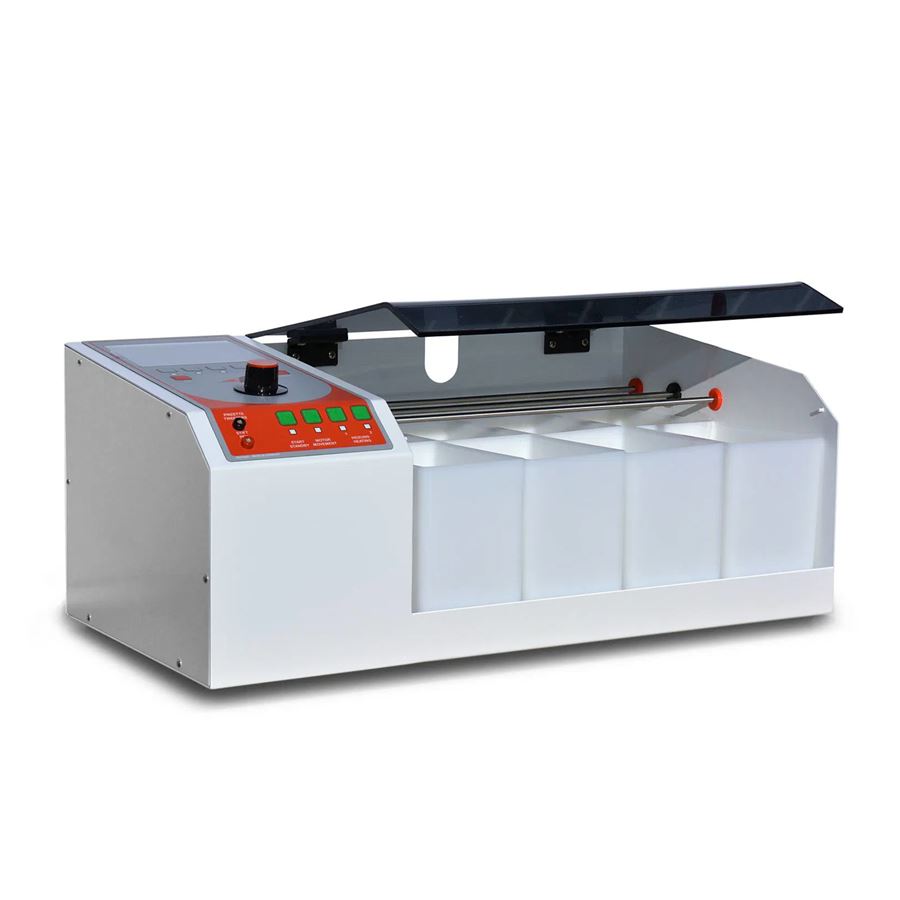

The Digital II version 2.0 is a programmable small-size electroplating unit which can be used for all current precious metal and non precious metal processes. The machine is characterized by it's user friendliness and the easy handling.The digital display of voltage, tension and temperature guarantees a careful and secure working. The integrated timer stops processes automatically and the ampere minute counter helps to calculate the precious metal consumption. In addition to pre installed plating programs, new programs can be installed. The machine menu is available in several european languages. Digital II version 2.0 has an integrated goods movement and a pen plating connection.

Technical data:

  • Dimensions (WxDxH): 700x320x250 mm
  • Weight: 18 kg
  • Bath volume: 4x1,5 l working tanks + 4x 1,5 l rinsing tanks
  • Bath dimensions: 150x100x150 mm
  • Rectifier: 15V/ 15A
  • Controlled heating: 2x200W
  • Supply voltage: 230V/ 50Hz, 120V/ 60Hz
  • Main fuse: 2,5A slow-blow, 250V ~, 5*20 mm
