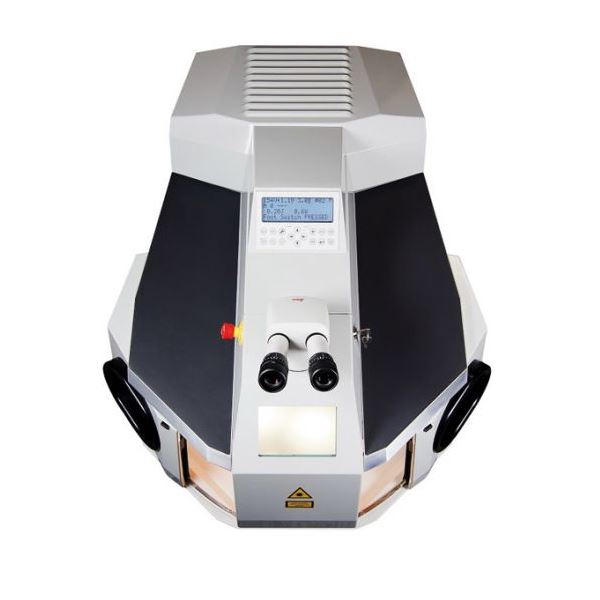

Asztali hegesztő lézer SL50

The extremely fast and powerful SL50 is the optimum solution for series production. The processing time is reduced to a minimum especially with seam welding. The removable bottom provides additional flexibility when larger workpieces are processed.

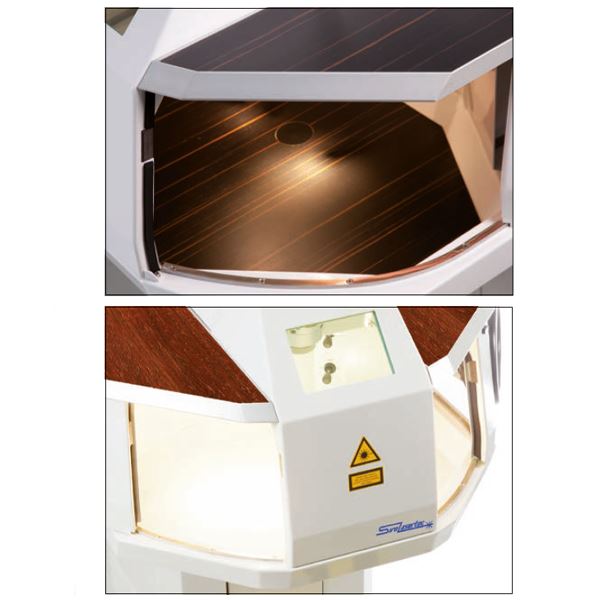

The SL 50 Thunder is based on the successful ALS 35 S model. It is one of the fastest handcraft laser workstations availableon the market: the device is especially suitable for series production due to its max. averaged performance of 120Watt and a pulse frequency of 25 cycles per second. Processing time is reduced to a minimum, especially when weldingseams. The optional mode aperture enables the beam diameter to be reduced to a mere 0.05 mm. This is of especiallygreat benefi t for very delicate workpieces. The casing is a welded high-grade steel construction. A working chamberwith removable bottom provides additional flexibility in the handling of large work pieces.

The high-quality stereo Leica microscope magnifies 15x for optimal observation of the welding process. The optimal mode aperture enables the beam diameter to be reduced to a mere 0.05 mm. This is of especially great benefit for very delicate workpieces.

Technical data:

• Peak pulse power: 10 kW
• Max average power: 120 W
• Pulse energy: 95 Joule
• Pulse frequency: Single – 25 Hz
• Pulse duration: 0.50-20 ms
• Spot diameter: 0.20-2.00 mm

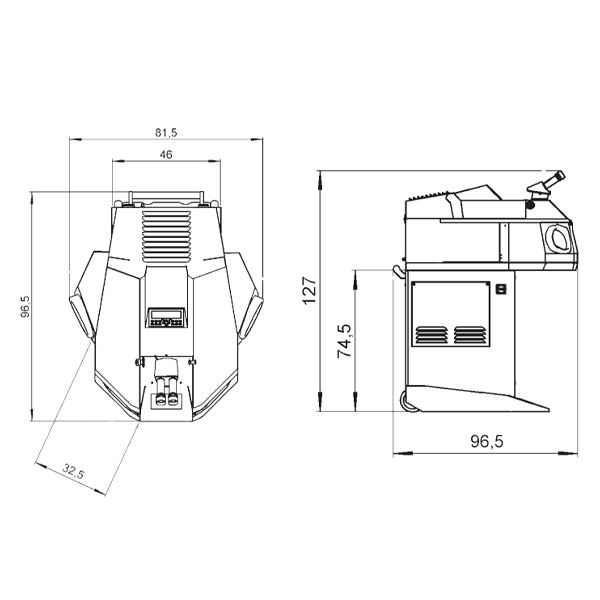

• Mechanical dimensions: 965 x 815 x 1270 mm
