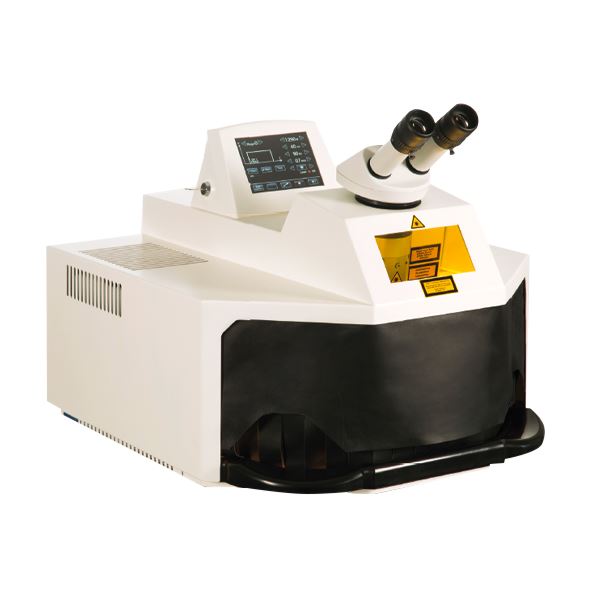

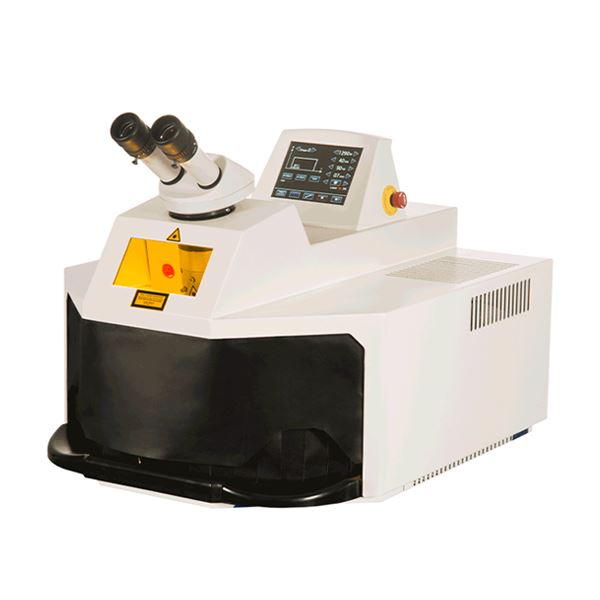

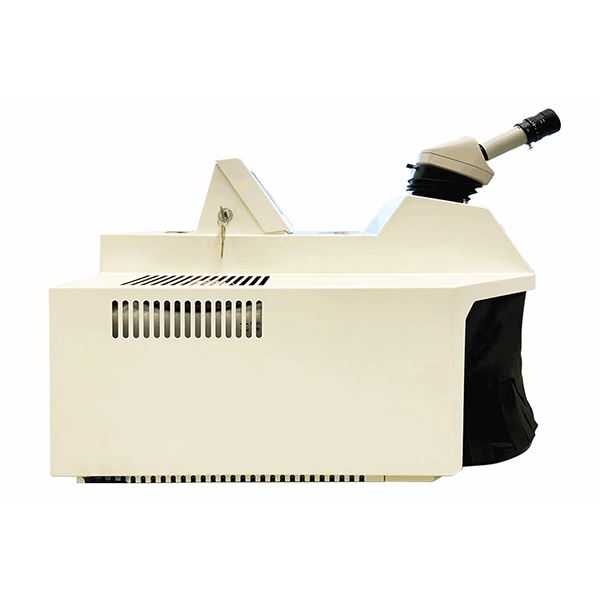

Asztali hegesztő lézer SL40

Asztali hegesztő lézer SL40

Az ön ára ÁFA nélkül
18 410,00 €
Az ön ára ÁFA-val
22 276,10 €
18410
HW-01259
Gyártó
Siro Lasertec
Hlavní sklad (Strašnice)
rendelésre
Prodejna (Soukenická)
rendelésre
Kód
21537



Developed for small workshops the lasersystem SL 20 is characterized by a tremendous compact design. As table model it is easily and quickly installed.
Asztali hegesztő lézer SL40Asztali hegesztő lézer SL40Asztali hegesztő lézer SL40Asztali hegesztő lézer SL40


Developed for small workshops the lasersystem SL 20 is characterized by a tremendous compact design. As table model it is easily and quickly installed.


With the SL 20 all laser welding tasks of a small workshop can be easily done. With 5 litres of water cooling the SL 20 is prepared for continuous operation. An efficient welding fumes extraction with fine dust particle filter is integrated as well.

The high-quality stereo Leica microscope magnifies 15x for optimal observation of the welding process. The optimal mode aperture enables the beam diameter to be reduced to a mere 0.05 mm. This is of especially great benefit for very delicate workpieces.

Technical data:

  • Peak pulse power: 7 kW
  • Max average power: 60 W
  • Pulse energy: 60 Joule
  • Pulse frequency: Single – 25 Hz
  • Pulse duration: 0.50-20 ms
  • Spot diameter: 0.20-2.00 mm

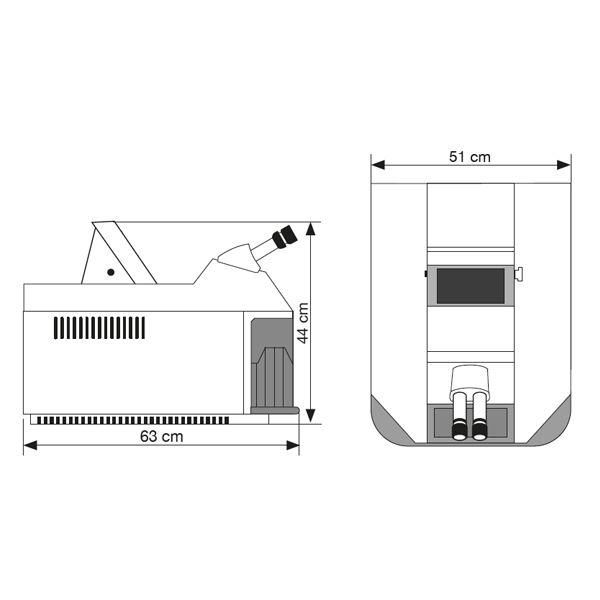

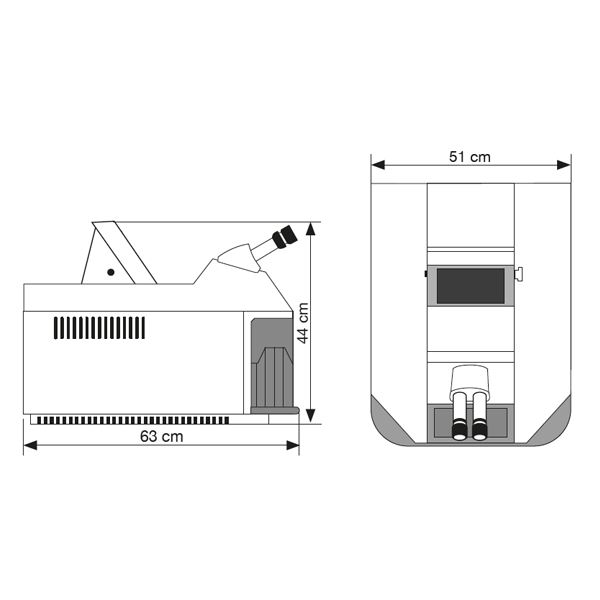

  • Mechanical dimensions: 510 x 645 x 430 mm
