electro polishing machine
piece

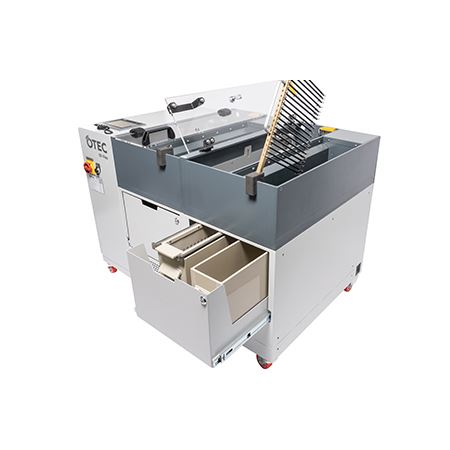

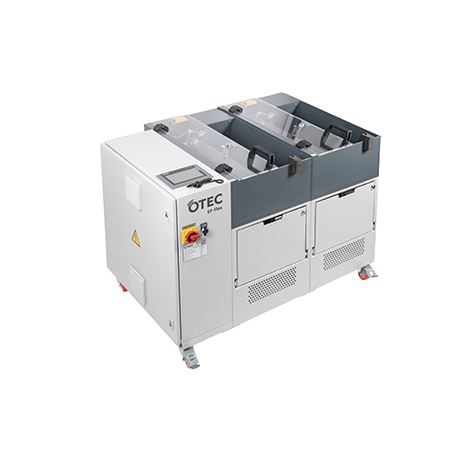

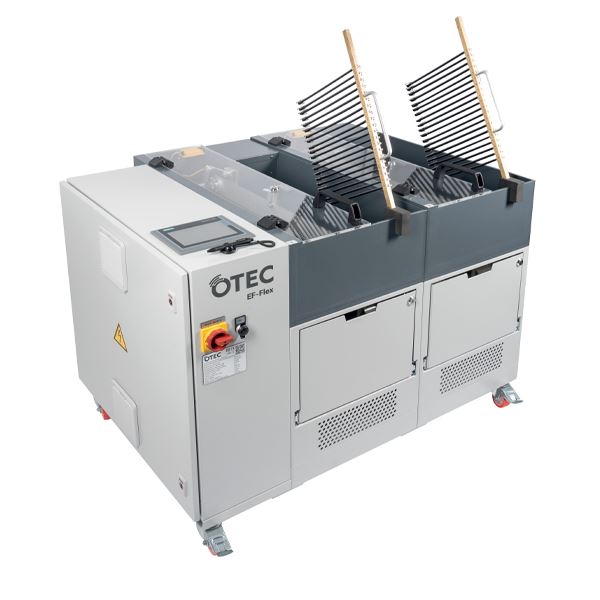

Electro polishing machine for gold and silver Machine consists of 2 process containers and 2 rinsing chambers. The rinsing chambers are located right next to the process container.

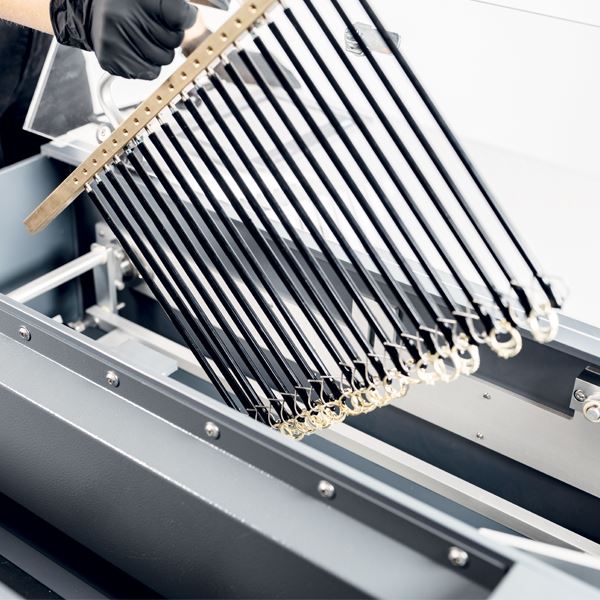

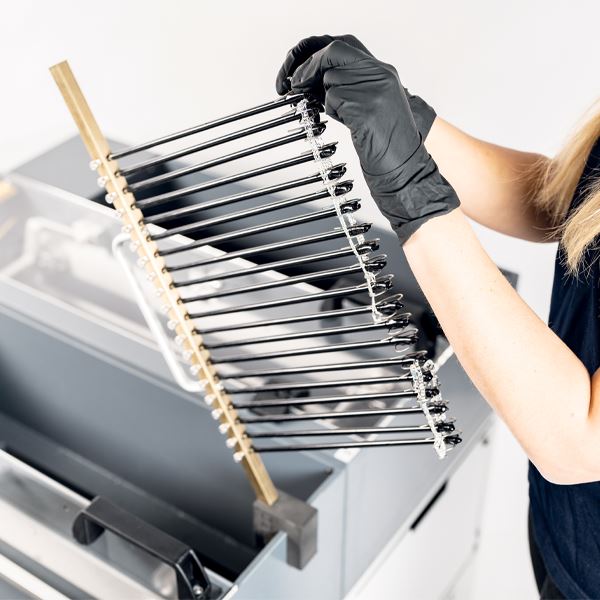

Scope:- 2 set of cathode system
Technical data:- Fully automated process control- Free adjustable process parameters:- Voltage, multistage- Electric current- Process time- Rotation direction
- Corrosion-resistant frame (stainless steel, plas- Machine can be equipped with extraction unit- Drive system for product carrier- Modular machine design on wheels.
- The machine consists of 2 modules:Control cabinet + process container.- Even then both process containers can beoperated independently- Connection for power supply: 230V / 50 - 60Hz
- Dimensions: L x W x H = 900 x 1270 x 955 mm- Weight: approx. 300 Kg- Power consumption 3,5 kVA- Pre-fuse: 16 A- Rectifier: max. 2000 WattsRinsing chamber:
- Bath volume appr. 20 liters- Useable volume appr. 16 liters- Specification in plasticInformation for extraction system:- Micro-filter efficiency: min. 99,98 %
- Gas filter efficiency: min. 95 %- Min. flow rate: 7 m/s ~ 255 m3/h- Hose connection on machine: O 50 mm (female)- In case of missing extraction system or low
flow rates the machine won't start operation!
