Elektromos henger Durston DRM 130 Double kétoldalas, fémlemez / drót

Elektromos henger Durston DRM 130 Double kétoldalas, fémlemez / drót

Az ön ára ÁFA nélkül
5 542,00 €
Az ön ára ÁFA-val
6 705,82 €
5542
1078
Gyártó
Durston
Hlavní sklad (Strašnice)
rendelésre
Prodejna (Soukenická)
rendelésre
Kód
16665

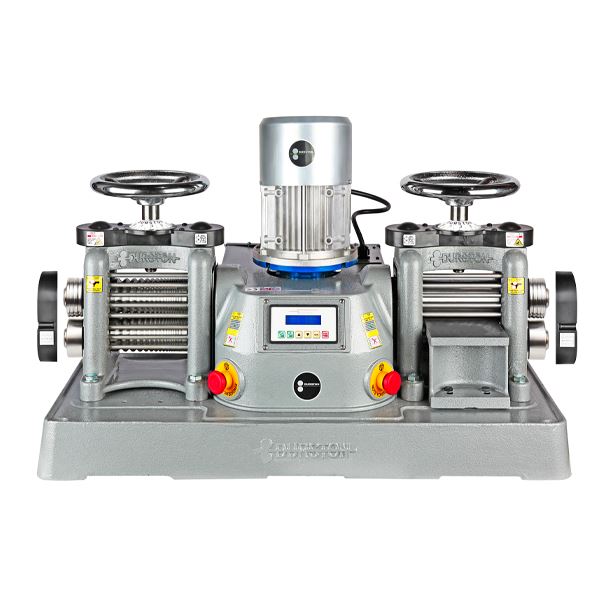

Powered Rolling Mill – DRM130 Double Sided from Durston Tools. The DRM 130 Double-Sided Powered Rolling Mill is constructed from cast iron for optimal strength and rigidity.
Elektromos henger Durston DRM 130 Double kétoldalas, fémlemez / drótElektromos henger Durston DRM 130 Double kétoldalas, fémlemez / drót


Powered Rolling Mill – DRM130 Double Sided from Durston Tools. The DRM 130 Double-Sided Powered Rolling Mill is constructed from cast iron for optimal strength and rigidity.

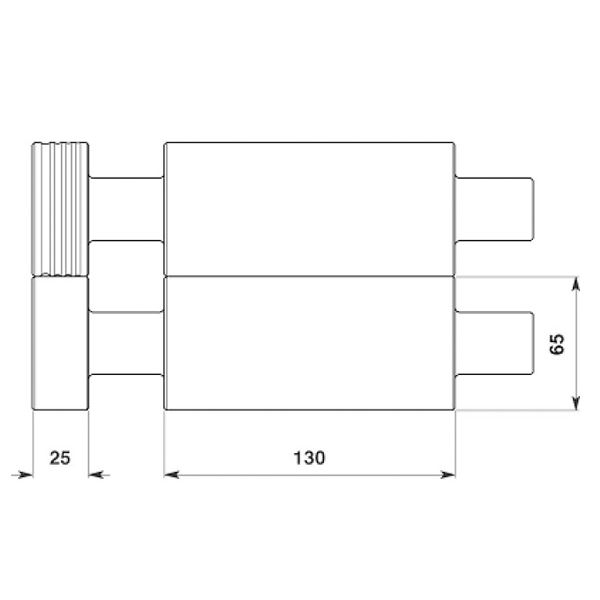

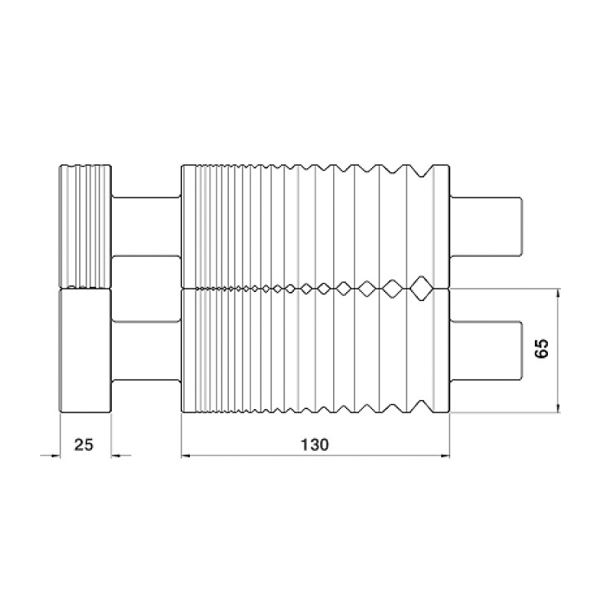

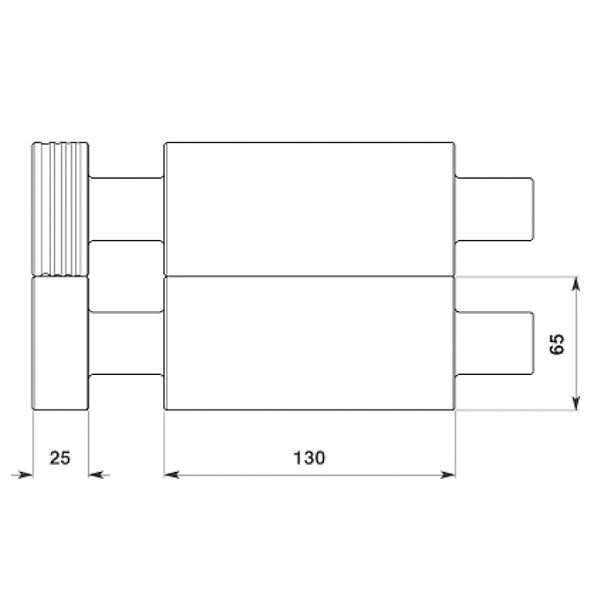

The 1.1 KW motor, is powerful enough for continuous operation which is why Durston Tools’ mills have such a long working life. This versatile package has variable speeds with forward and reverse, and a highly efficient near-silent operation. The rolls are specially induction hardened to 64 RC; the left barrel to a depth of 6mm, ensuring your flat rolls last a lifetime, and the right barrel offers 19 square grooves for wire forming from 10mm – 1mm. Two sets of extension rollers provide a total of seven half-rounds.

  • WEIGHT: 200 kg
  • PRODUCT WEIGHT: 180 kg
  • PRODUCT LENGTH: 830 mm
  • PRODUCT WIDTH: 390 mm
  • PRODUCT HEIGHT: 540 mm
  • NUMBER OF GROOVES: 19
  • MAX. SHEET THICKNESS: 6
  • ROLLER TYPE: Combination
  • ROLLER DIAMETER: 65
  • ROLLER LENGTH: 130 mm
  • SIDE EXTENSIONS: & 1.5mm, 2, 3, 3mm and 4, 6, 8
  • MAX. WIRE CAPACITY: 10mm
  • VOLTAGE: 110V, 220V
  • RANGE: DRM Powered
